Thanks to python syntax, provided there is no need to use include to merge code, one single python script can be used on the command line, but also as a task wrapper with no change, and it may provide the ability to load the task into the expected server/suite for operation and test.
meter sweeper Expand source
#!/usr/bin/env python
"""
python docstring: demonstrate python cli + ecFlow task wrapper + task loader
$manual
DESCRIPTION:
sweeper:
find out min/max among modeleps_nemo tasks
OPERATORS: please, set complete if problematic
ANALYST: example as pure python task - job
$end
$comment
comments can be added ...
$end
"""
import time
import os.path
import getopt
import sys
PATH = "/usr/local/apps/ecflow/4.0.9/lib/python2.7/site-packages/ecflow"
sys.path.insert(0, PATH)
import ecflow as ec
MICRO = "$$" # double dollar to please ecFlow micro character balance
TARGET_TASK = "modeleps_nemo" # use option -t to overwrite
TARGET_METER = "step" # would this need an option???
MC_STEPS_LIST = ("/mc/main/12/legA/fc", # use option -p for single path
"/mc/main/12/legB/fc",
"/mc/main/18bc/legA/fc",
"/mc/main/00/legA/fc",
"/mc/main/00/legB/fc",
"/mc/main/06bc/legA/fc",
"/mofc/thu/01/legC/fc",
"/mofc/thu/hind/14/back",
"/mofc/mon/01/legC/fc",
"/mofc/mon/hind/14/back",)
def focus_below(node):
""" continue down below nodes which name is expected ;
please update for external use...
"""
return (node.name() in ("00", "12", "18bc", "06bc",
"legA", "legB", "pf", "cf", "fc")
or "main" == node.name())
def process(item, path=None, low=999, high=-1, task=None):
""" track nodes to follow and update min/max """
if type(item) == str:
defs = ec.Defs(item)
elif isinstance(item, ec.Client):
item.sync_local()
defs = item.get_defs()
elif isinstance(item, ec.Defs):
defs = item
else: defs = None
if defs:
for node in defs.suites:
if node.name() != str(path.split('/')[1]):
continue
status = "%s" % node.get_state()
if node.is_suspended() or status == "unknown":
continue
for item in node.nodes:
low, high = process(item, path, low, high, task)
elif isinstance(item, ec.Family):
for node in item.nodes:
if focus_below(node):
return process(node, path, low, high, task)
low, high = process(node, path, low, high, task)
elif isinstance(item, ec.Task):
node = item
path2node = item.get_abs_node_path()
status = "%s" % node.get_state()
# ignore cal-val # ecmwf specific
if ("/cv/" in path2node or
not task in item.name()): return low, high
if "/cv/" in path2node and (high > 240 or low < -1):
high = 240
return low, high
stamp = ""
evt = ""
meter = ""
if node.is_suspended():
status = "suspended"
try:
for att in node.meters:
meter = "%s" % att.value()
if att.name() != TARGET_METER:
continue
if att.value() > high:
high = att.value()
elif att.value() < low:
low = att.value()
except Exception as excpt:
print("#! problem with line:", excpt)
# name = "%20s %s %5s %5s" % (path2node, stamp, evt, meter)
else: print type(item)
return low, high
def create_task():
""" add ecFlow task into a family..."""
sys.path.append("/home/ma/emos/o/def")
import ecf
steps = 360
return ecf.Task("sweeper").add(
ecf.Variables(
ECF_FILES=os.getenv("ECF_FDI", None),
ECF_EXTN=".py",
ECF_JOB_CMD="ssh -x $WSHOST$ $ECF_JOB$ > $ECF_JOBOUT$ 2>&1 &",
ECF_MICRO=MICRO[0],
),
ecf.Label("info", ""),
ecf.Defcomplete(),
ecf.Meter("min", -1, steps, steps),
ecf.Meter("max", -1, steps, steps),)
def loader(test=1, host=os.getenv("ECF_TEST_HOST", None)):
""" replace sweeper task in test/oper mode """
sys.path.append("/home/ma/emos/o/def")
import ecf
if test:
env = {"host": os.getenv("ECF_TEST_HOST", None),
"port": os.getenv("ECF_TEST_PORT", None),
"path": "/admine/steps", }
else:
env = {"host": os.getenv("ECF_OPER_HOST", None),
"port": os.getenv("ECF_OPER_PORT", None),
"path": "/admin/steps", }
defs = ecf.Defs()
path = env["path"]
sname = str(path.split('/')[1])
fname = str(path.split('/')[2])
suite = ecf.Suite(sname).add(
ecf.Extern(MC_STEPS_LIST, defs),
ecf.Family(fname).add(create_task().add(
ecf.Cron("04:30 23:59 03:00"),
ecf.Trigger("==active or ".join(MC_STEPS_LIST) + "==active"),
ecf.Variables(WSHOST=host,
QUEUE="test"),
)))
defs.add_suite(suite)
print "#MSG: replacing", path, env["host"], env["port"]
ecf.Client(env["host"], env["port"]).replace(path, defs, 1, 1)
class Sweep(object):
""" find min/max meter value below a node """
def __init__(self, host=None, port=None, path=None, task=None):
import signal
if host is None:
host = os.getenv("ECF_NODE", "$ECF_NODE$")
if port is None:
port = int(os.getenv("ECF_PORT", "$ECF_PORT$"))
self.clt = ec.Client(host, port)
self.cl2 = None
if path is None:
self.path = MC_STEPS_LIST
else: self.path = (path)
if task is None:
self.task = TARGET_TASK
else: self.task = task
# shall make sense when processed into job by ecflow
# name remains when not processed...
ecfv = {"ECF_NODE": "$ECF_NODE$",
"ECF_PASS": "$ECF_PASS$",
"ECF_NAME": "$ECF_NAME$",
"ECF_PORT": "$ECF_PORT$",
"ECF_TRYNO": "$ECF_TRYNO$", }
for key, val in ecfv.items():
if key in val:
ecfv[key] = os.getenv(key, None)
if ecfv["ECF_NODE"] and ecfv["ECF_NAME"]:
print "#MSG will communicated with server..."
print "#kill: ssh %s kill -15 %d" % (ecfv["ECF_NODE"], os.getpid())
self.cl2 = ec.Client()
self.cl2.set_host_port(ecfv["ECF_NODE"], ecfv["ECF_PORT"])
self.cl2.set_child_pid(os.getpid())
self.cl2.set_child_path(ecfv["ECF_NAME"])
self.cl2.set_child_password(ecfv["ECF_PASS"])
self.cl2.set_child_try_no(int(ecfv["ECF_TRYNO"]))
self.cl2.child_init()
self.cl2.set_child_timeout(20)
for sig in (signal.SIGINT,
signal.SIGHUP,
signal.SIGQUIT,
signal.SIGILL,
signal.SIGTRAP,
signal.SIGIOT,
signal.SIGBUS,
signal.SIGFPE,
signal.SIGUSR1,
signal.SIGUSR2,
signal.SIGPIPE,
signal.SIGTERM,
signal.SIGXCPU,
signal.SIGPWR):
signal.signal(sig, self.signal_handler)
def signal_handler(self, signum, frame):
""" catch signal """
print 'Aborting: Signal handler called with signal ', signum
self.cl2.child_abort("Signal handler called with signal " + str(signum))
def report(self, msg, meter=None):
""" communicate with ecFlow server """
if not self.cl2:
return
if meter:
self.cl2.child_meter(msg, meter)
elif msg == "stop":
self.cl2.child_complete()
sys.exit(0)
else: self.cl2.child_label("info", msg)
def update(self):
""" refresh status tree asking ecFlow server """
num = 20
leg = "legA"
for path in self.path:
first = 1
low = 0
high = 0
self.clt.ch_register(False, [str(path.split('/')[1])])
if "/back" in path:
path += "/%02d/%s" % (num, leg)
while 1:
clt = self.clt
status = ""
try:
if clt.news_local() or first: # has the server changed
clt.sync_local()
first = 0
defs = clt.get_defs()
node = defs.find_abs_node(path)
if node:
status = "%s" % node.get_state()
low, high = process(node, self.path, 999, -1, self.task)
sleep = 30
else: sleep = 90
msg = "... %ds %s %s %d %d"% (sleep, path, status,
low, high)
print msg
if type(low) != type(high):
print type(low), type(high)
if status == "complete":
if leg == "legB":
num -= 1
leg = "legA"
else: leg = "legB"
break
elif low == high and status in (
"queued", "aborted", "complete") or node is None:
if node:
msg = "# %s %s" % (node.get_abs_node_path(), status)
print msg,
self.report(msg)
break
else:
self.report(msg)
self.report("min", low)
self.report("max", high)
sys.stdout.flush()
time.sleep(sleep)
except RuntimeError, exp:
print str(exp)
def usage():
""" help """
print """client
-o: operational node is to be replaced, default is test node,
provide this option BEFORE -r
-r: replace task node
-p: path to look below, by default internal list MC_STEPS_LIST will be used
-h: this help
ECF_NODE=localhost ECF_PORT=31415 ./client.py --path /mc/main/18bc/legA/fc -e
"""
if __name__ == '__main__':
try:
OPTS, ARGS = getopt.getopt(
sys.argv[1:], "hep:rot:",
["help", "ens", "path", "replace", "oper", "task"])
except getopt.GetoptError as err:
print "# what?", usage()
sys.exit(2)
TEST = 1
PATH = None
TASK = None
for o, a in OPTS:
if o in ("-e", "--ens", ):
Sweep(path=PATH).update()
sys.exit(0)
elif o in ("-r", "--replace", ):
loader(TEST)
sys.exit(0)
elif o in ("-p", "--path", ):
PATH = a
elif o in ("-o", "--oper", ):
TEST = 0
elif o in ("-t", "--task", ):
TASK = a
CLT = Sweep(path=PATH, task=TASK)
CLT.update()
CLT.report("stop")

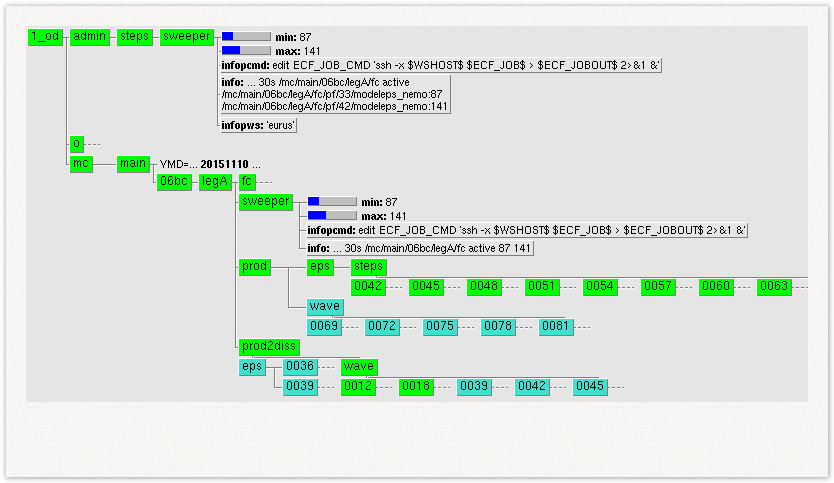

Sweeper is used in operation to start product generation earlier.
