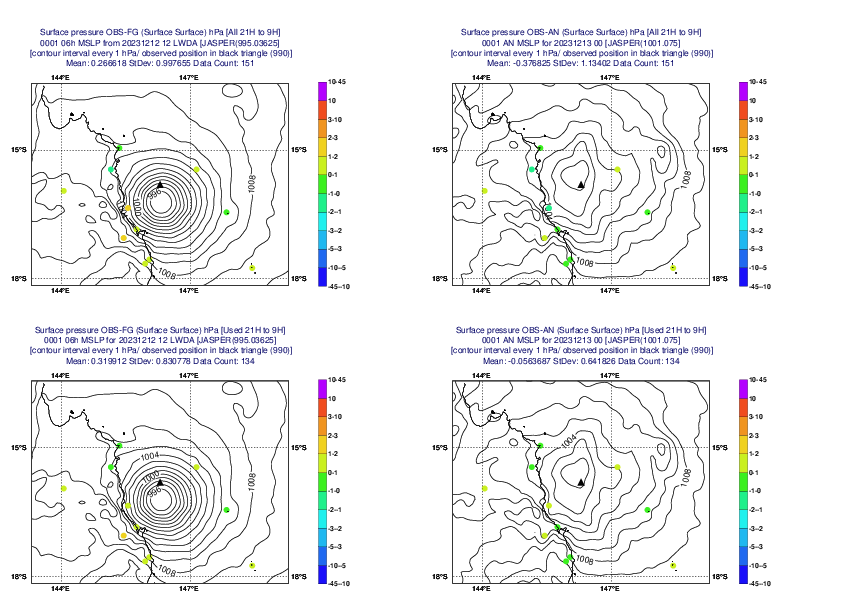

The plot below show first guess (left) and analysis (right) of MSLP and departures of surface pressure observations for the LWDA cycle on 13 December 00UTC. This data assimilation cycle seems to have severe problems with the TC.
3.2 HRES
The plots below show 5-day precipitation (13 December 00UTC - 18 December 00UTC) in concatenated short forecasts (first plot) and ENS control forecasts with different lead times. Note that sea points have been masked out. The box marks 15.5S - 17.5S, 145E- 146E.
...
